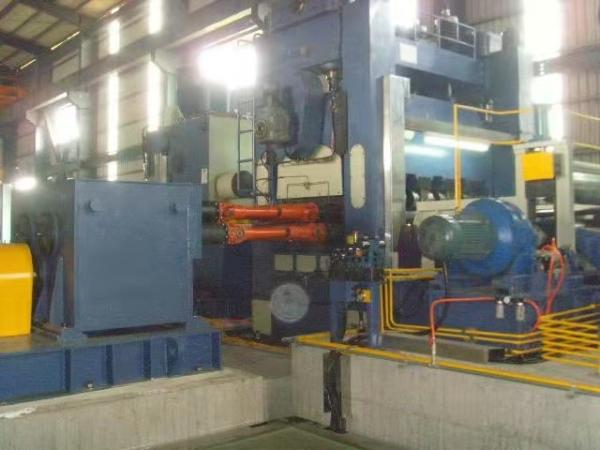

Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter

    Buy cheap Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter from wholesalers

    Buy cheap Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter from wholesalers
    • Buy cheap Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter from wholesalers
    • Buy cheap Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter from wholesalers
    • Buy cheap Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter from wholesalers
    • Buy cheap Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter from wholesalers
    • Buy cheap Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter from wholesalers

    Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter

    Ask Lasest Price
    Brand Name : RILANT
    Model Number : SZWG-2000N
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Tinplate Steel Coil Cutting Machine 850mm Sheet Metal Roller Cutter

    Automatic Cold Rolling Metal Cutting Machine Coil Sheet Slitting Coil Line


    Application:It is suitable for the longitudinal shearing of the metal coils and rewinding coils.
    Advantages:Easy to operate, slitting quality is high, excellent material utilization, Stepless shearing speed regulation, etc.
    Structure:It consist of uncoiler, feeding and positioning, slitting unit, recoiler, etc.
    Applicable Materials: Tinplate, silicon steel, aluminum, copper, stainless steel and galvanized steel, etc.

    Steel coil parametersMaterialHR,CRS and GI
    Tensile strengthδb≤450Mpa,δS≤260Mpa
    Steel thickness0.3-3mm
    Steel width500-1600
    Steel coil I.Dφ480-520 mm
    Steel coil O.Dφ1600mm(Max)
    Steel coil weight15T
    Slitter parametersknife pivot diameterФ200 mm
    Knife pivot material40Cr
    Blades specificationΦ200mmXφ340mmX15mm
    Blade material6CrW2Si
    Slit parameterMax slit quantity5 pcs (3mm) 25 pcs(0.3mm)
    Width precision≤±0.05mm/2M
    Mini slit strips width20mm
    Other parametersPower380V/50Hz/3Ph
    Line speed0-100m/min
    Capacity210 Kw
    Whole line Dimension25m(L)X8m(W)
    Operator needed1 mechanical engineer ,2 common workers
    Line directionFrom right to left(Face to machine)
    Machine colorWhite grey
