    Steel 380V Sheet Metal Progressive Die 45kw Progressive Stamping Press

    Ask Lasest Price
    Brand Name : WORLD
    Model Number : SZ-500
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

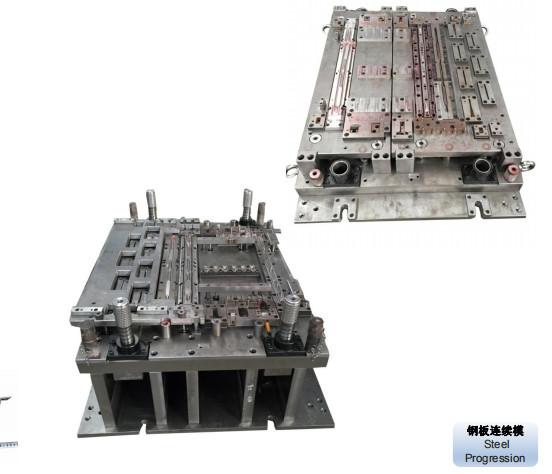

    Steel 380V Sheet Metal Progressive Die 45kw Progressive Stamping Press

    Custom High Precision Industrial Steel Material Progressive Stamping Die


    Product Name
    ISO9001 factory custom precision metal progressive stamping die factory
    Material
    Die plate:SKD11,Stripper plate:P20 or As specified by the customer
    Color
    Natural color
    Standard
    DIN GB ISO JIS BA ANSI
    Design file format
    dwg, dxf, step, x_t, top, igs
    Tooling manufacturing cycle
    3 Weeks to 10 Weeks
    Forming way
    Punching, Blanking, Bending, Burning, Deep drawing, Forming etc.
    Press machine tonnage
    30T to 315T

    Press machine


    ITEMCODEUNITJW31-160JW31-200JW31-250JW31-315JW31-400
    Nominal CapacityPeKN16002000250031504000
    Slide Stroke LengthSmm180200220220250
    Slide StrokesFixedspm4545303025
    Variable(optional)spm35-5535-5520-3520-3520-30
    Max. Die Shut HeightH2mm400450500550600
    Die Shut Height Adjustmenttmm110110120120120
    Distance Between Uprightsd1mm11001200130013501450
    Slide Bottom SizeFBbmm600700750800850
    LRamm75085095010001100
    Shank Hole SizeDiameterdmm6565707080
    DepthImm90909595100
    Table SizeFBDmm650750800850900
    LRCmm10001100120012501350
    ThicknessH3mm165180190190200
    Overall DimensionsFBAmm22002300250026002700
    LRBmm17802000205022002370
    HeightHmm38004200420045504900
    Motor PowerKW1518.5223037
    Features
    1. High efficiency and energy saving. The power consumption is 30%-50% more than that of ordinary motors.
    2. low noise, noise can be controlled at around 60 decibels.
    3. the working position, speed and pressure can be adjusted by infinitely.
    4.Quick response, pressure and high repeatability.
    5.high efficiency, multiple protection inside, low failure rate.
    6.and 12 hours of continuous work do not require cooling oil temperature.
    7.pipes and joints adopt SEA international standard to prevent oil leakage.
    8.Adopt the button centralized control, (fixed range / fixed pressure) two control modes, (adjustment / automatic) two operation modes.
    9.European CE standard hydraulic system and electrical safety IP54 grade.
