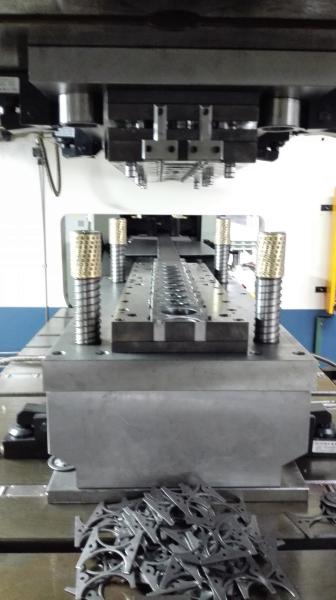

Metal Material Stamping Mould Progressive Metal Stamping Tools
Punching Die Mold Custom
Specifications
Material | H13.Diver,ADC12, A380, AlSi12, A356, A360, AlSi9Cu3, LM6,ect or
Customized |
Shaping Mode | Stamping/punching mold /Progressive Die/Stretching mold |
Serface finish | Sand blasting, polishing, Electroplating, powder coating, oxidation
,Vacuum Plating |
Process | 40-600T stamping |
Size/Weight | OEM |
Tolerances/Flatness | 0.02mm/0.05mm |
Certificate | ISO9001:2008 IATF16949 |
Design software | CAE/CAXA/UG/PRO/E, Auto CAD, Slid Work |
Delivery time | 15~60 working days | |
Payment terms | TT/ Western Union /Paypal ( 50% deposit, 50 % balance before
shipment.) | |
Application | uto parts/terminal parts/ electrical appliance etc. |
1) Equipment: We own Stamping machines, Hydraulic press machines, Auto-Turning
machines, CNC-Turning machines, Milling machines, Precision wire
cutting machines, more than 160 sets in total;
2) Material: iron, carbon steel, stainless steel, brass, copper, alloy steel,
aluminum, cold rolled steel with various plating;
3) Surface treatment: kinds of plating (Zinc, Nikel, Chrome, Tin, Ag); Painting, Powder,
Anodizing, E-coating, Silkscreen, Heat treatment, Black oxid;
4) Standard/ specification: OEM service as per customers' requests, within-house tooling
design & fabricating;
5) RoHS compliance for export
6) Quality assurance in accordance with ISO9001:2008
7) Concurrent engineering capability on product design
8) Just-in-time manufacturing capability to meet customer's
requirement
9) Tailor-made packaging method according to customer's requirement
1.Mould details:
| Product Name | power press dies |
| Material of Die | D2, SKH-9, SKD11, A3,SKD61 etc. |
| Design Software | AutoCAD, PRO/E |
| Die Type | Stamping press moulds , stamping die, punching die, sheet metal
mould , progressivedie, terminal die,single die, double die or
according to your parts |
| Drawing format | igs,stp, prt, asm, pdf, dwg, dxf |
| Die Life | 1,000,000-3,000,000 shots |
| First Trial | 15-25 days after mold drawing confirmed |
2.Mould building process
| Step | Item | high speed stamping die |
| 1 | Quotation | Quote competitive price according to your details (drawing or
sample, and related requirements). |
| 2 | Order | Sign agreement after confirming price |
| 3 | Mould design | Design the mould structure drawing according to your product
drawing or sample, then send to you for confirmation. |
| 4 | Mould making | After your confirmation of our drawing, we begin to make the
moulds, during manufacturing program, we send you mould building progress with pictures every week, for
you to know our process. |
| 5 | First trial | We will make the stamping die first trial on time, then send you
video or picture and trial samples for you to confirm. Or you can also come to our factory .And we will inspect them and
issue the report. |
| 6 | Quality confirm | You will confirm our stamping die quality according to sample. If you need to adjust the product structure, we can help you to
change it further. |
| 7 | Delivery | Ship the stamping die after it is completely OK, packed by wooden
case. And together with mould, mould detailed drawing, mould label will
be also delivered. |
