Aluminium Foil Coil Sheet Metal Slitting Machine Slitting Line
Aluminum Steel Strip Coil Slitting Roller Equipment Line
The Slitting Line is auto line with operate easily and high
productivity ,raw material is cold steel ,stainless steel,aluminum
,pickle steel etc .It is mainly composed of un-coiler, feeder,
slitter and re-coiler. Its function is to slit a wide coil to
stated width strips coil along with the length direction which can
be used for construction product like wall and roof ,some door &
window frame etc , At same time, changing different material blade
can slit various metal coils.
| NameModel | 0.2-2.0×1500 | 0.25-3.0×1600 | 0.3-3.5×1800 | 0.5-4.0×1800 |
| Coil Thickness(mm) | 0.2-2.0 | 0.25-3.0 | 0.5-3.0 | 0.5-4.0 |
| Coil Width(mm) | 600-1500 | 600-1600 | 600-1800 | 600-1800 |
| Slitting Strips | 2-20 | 2-20 | 2-15 | 2-15 |
| Strip Width Precision(mm) | ±0.1 | ±0.1 | ±0.15 | ±0.15 |
| Line Speed(mm) | 10-180 | 10-180 | 10-180 | 10-180 |
| Coil Weight(T) | 10 | 15 | 20 | 30 |
| Coil I.D.(mm) | 508 | 508 | 508,610 | 508,610 |
| Recoiling I.D.(mm) | 508 | 508 | 508 | 610 |
| Main Shaft Dia.(mm) | 220 | 240 | 240 | 240 |
Other Data
Line Speed: 0～120m/min
Location Size: length 18m
Power Supply: 380V/50HZ/3Phase
Power: about 130KW
Drive Motor: Uncoiler Motor AC11KW
Slitter Motor AC37KW
Collecting Motor AC75KW
Hydraulic Station Motor AC7.5KW
Line Direction: face to operation panel from left to right
Operator: technical worker 2, normal worker 1
Machine Color: Blue or customized
Machines List
Loading Car: 1set
Hydraulic Uncoiler: 1set
Hydraulic Assistance Support: 1set
Transfer Bridge: 1set
Side Guide & Slitting Machine: 1set
Transfer Bridge: 1set
Hydraulic Tension Station: 1set
Hydraulic Collecting Machine: 1set
Hydraulic Assistance Support: 1set
Unloading Car: 1set
Hydraulic System: 1set
Electrical Control System: 1set
Spare Parts: 1set
Technical Process Flow:
Loading→Uncoil→Transfer Bridge→Guide&Slitting→Waster Material
Collecting→Transfer Bridge→Tension→Roll Collecting→Unloading
Electrical Parts List
| No | Name | Supplier |
| 1 | PLC | Taiwan Yonghong |
| 2 | Operation Screen | Taiwan Weilun |
| 3 | Inverter | China Famous Brand |
| 4 | Intermediate Relay | China Famous Brand |
| 5 | Pneumatic Unit | China Famous Brand |
| 6 | Motor | China Famous Brand |
| 7 | Hydraulic Unit | China Famous Brand |
| 8 | Main Bearing | China Famous Brand |
The slitting machine is also called vertical slitting line which
are used to slit cold rolled steel coil,hot rolled steel
coil,galvanized steel coil,silicone steel coil,stainless steel
coil,aluminum coils etc into different width according to the
user’s production demands and cut as well The smaller metal strips

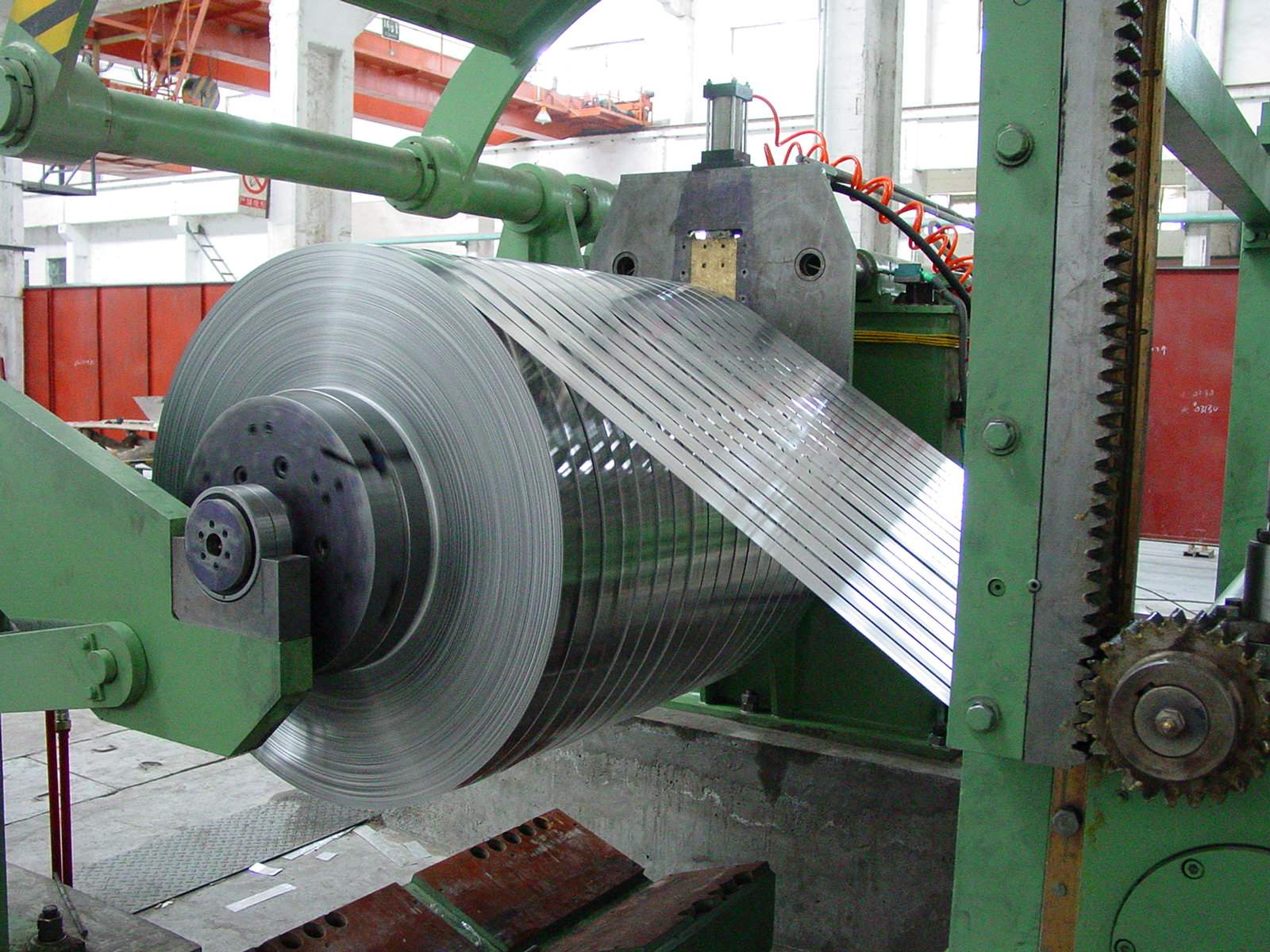

are recoiled at the end of the slitting machine by which these
smaller strips are used necessarily for the next process usage in
the professional field of making transformers,motors making
industry,tube/pipe welding mill industry,Cold roll forming
industry, ceiling drywall industry and other high-precison
equipment making and metal strips making industries. According to
the material slitting thickness there are thin plate or board
slitting machine,media-thickness plate or board slitting machine
and thick plate or board slitting machine. According to the metal
materials there are copper strips slitting machine,stainless steel
slitting machine,cold or hot rolled plate slitting machine,silicone
steel slitting machine.
