    16.0mm Steel Coil Slitting Machine 30T Stainless Steel Sheet Cutting Machine

    Ask Lasest Price
    Brand Name : RILANT
    Model Number : SZHG-2500N
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    16.0mm Steel Coil Slitting Machine 30T Stainless Steel Sheet Cutting Machine

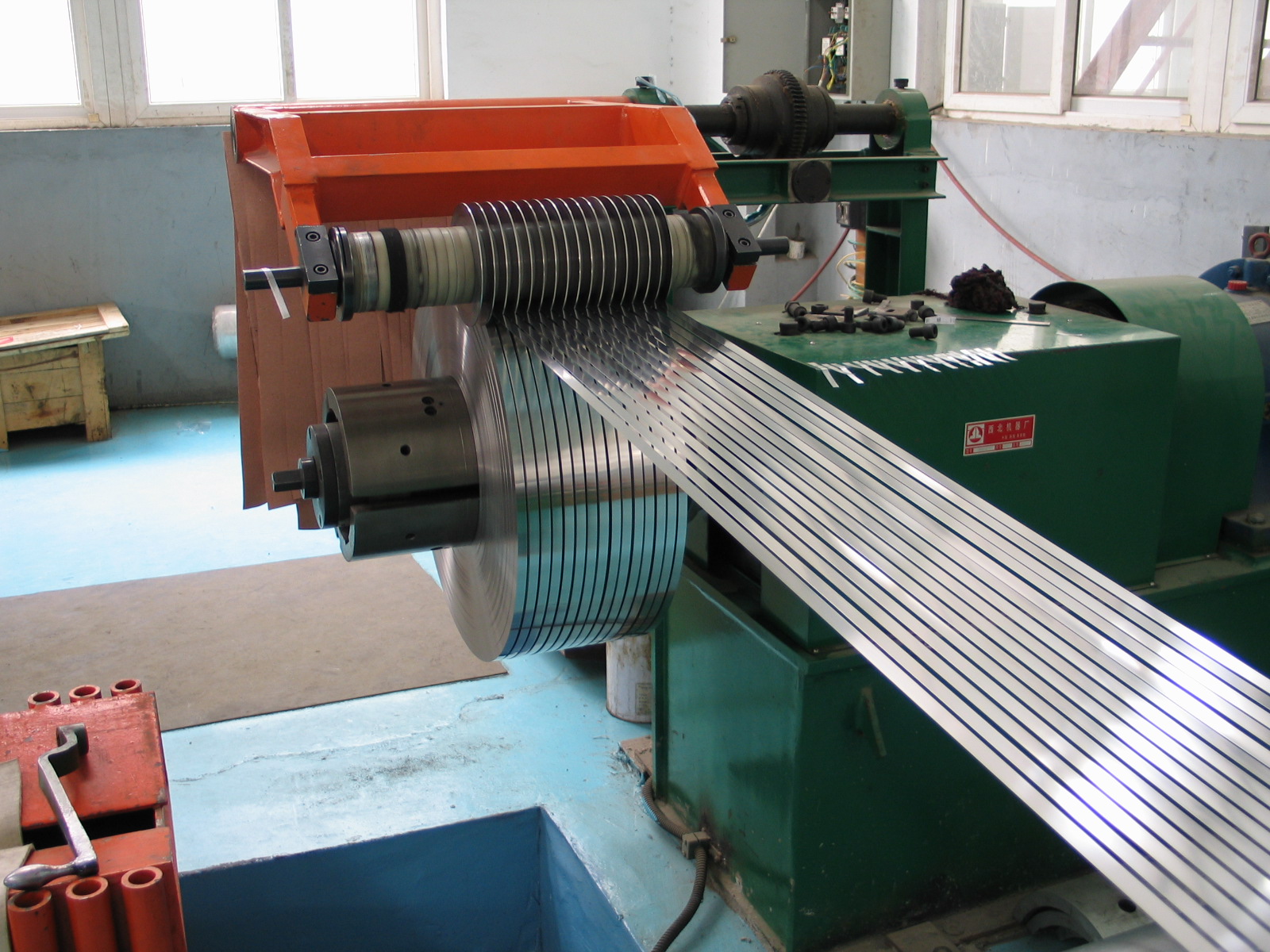

    Stainless Steel Sheet Steel Coil Cutting Slitting Machine Steel Coil Precision Slitting Line

    Slitting line machine for cutting narrow coils from main coils. For widths of up to 3000 mm, thicknesses of up to 25 mm and speeds of up to 120 m/min or more.

    The slitting lines are composed of high-precision slitters with quick tooling change for slitter, tensioning device and recoiler. High-capacity recoilers . Extraction from coils without banding. Scrap ballers or scrap choppers. Moving tensioning devices with incorporated levelling.Totally computer-controlled with diagnosis, automatic coil feed and quality control.

    For carbon steel, exposed and non exposed materials , stainless steel, pre-painted steel, aluminium and other metals.

    1applicationStainless steel,Aluminium,Hot rolled,Cold Rolled
    2Thickness of coiled plate4.0-16.0mm
    3Width of coiled plate2500mm
    4Line speed0-30m/min
    5Loading capacity30T
    6Coil I.D510/610/720mm
    7Coil O.D≤2000mm
    8Diameter of leveling roller190
    10Number of leveling rollers11
    11Length accuracy±1.2mm/m
    12Levelling accuracy±2mm/ m2
    13Direction of feed materialfrom Right to Left or Left to Right(customized
    14Power Supplycustomized

    1. Specifications:Technical Parameters of roll slitting machine:


    a. applied to : HR,CR

    b. Tensile strength:b≤500Mpa,S≤300Mpa

    c. thickness:0.5-2.0mm

    d. width:500-1500(Max)

    e. coil ID: 508mm

    f. coil OD:1600mm(Max)

    g. weight :15T(Max)

    h. diameter of leveling rollers: 65mm

    i. distance of leveling rollers:70mm,

    j. material of leveling roller:GCr15,hardness:HRC55-60

    k. total weight of machines:around 30T

    2. Finished products parameters:

    a. diagonal tolerance:≤±1mm/2000mm

    b. length tolerance:≤±0.5mm/2000mm

    3. Other parameters :

    a. power :380V/50Hz/3Ph

    b. line speed:0-60m/min

    c. capacity :around 100Kw

    d. area of the whole production line(about) 25m(L)X7m(W)

    e. people of operation: 1 technician and 2 general workers

    f. color of the machines: grass green

    Composed devices of roll slitting machine:

    1.Hydrauliccoil car

    2.Hydraulic decoiler

    3.Slitting machine

    4.Scrap winder

    5.Tension stand

    6.Hydraulic recoil

    7.Unloaded car

    8.Hydraulic control system

    9.ELectric control system
