    Carbon Steel Automatic Slitting Machine 50Hz Foil Slitting Machine

    Ask Lasest Price
    Brand Name : RILANT
    Model Number : SZHG-2500N
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

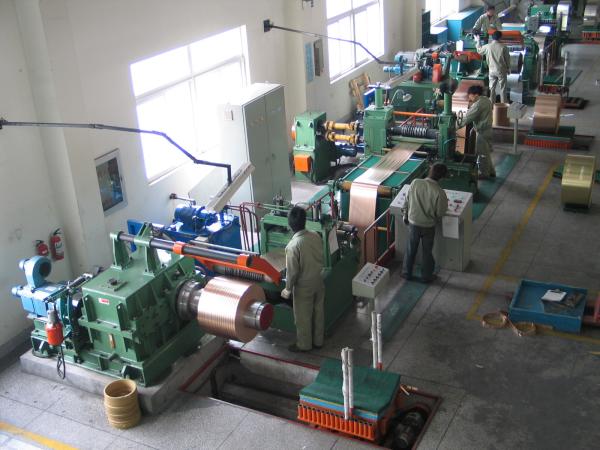

    Carbon Steel Automatic Slitting Machine 50Hz Foil Slitting Machine

    Stainless Steel Sheet Steel Coil Cutting Slitting Machine Steel Coil Precision Slitting Line

    Slitting line machine for cutting narrow coils from main coils. For widths of up to 3000 mm, thicknesses of up to 25 mm and speeds of up to 120 m/min or more.

    The slitting lines are composed of high-precision slitters with quick tooling change for slitter, tensioning device and recoiler. High-capacity recoilers . Extraction from coils without banding. Scrap ballers or scrap choppers. Moving tensioning devices with incorporated levelling.Totally computer-controlled with diagnosis, automatic coil feed and quality control.

    For carbon steel, exposed and non exposed materials , stainless steel, pre-painted steel, aluminium and other metals.


    PERFORMANCE AND STRUCTURE

    The slitting line is used to get flat sheets from steel coils after 5-6 working procedures.

    The total line is CNC control.

    After operator put coil onto the loading cart, the following procedures will finish automatically.

    The touch screen in the controlling table will allow operator to input parameters required.

    The total line is easy to operate.

    Such a line normally containing below working procedures:

    1.unloading cart (optional)
    2. decoiling
    3. shoveling and pressing device
    5. crop shearing
    6. loop
    7. correcting and slitting
    8. loop
    9. seperator
    10. damping
    11. recolilng
    12.unloading cart

    ModelPlate thicknessPlate widthSteel coil weightWidth of finishedShear Speed
    3*1250mm0.5-3.0mm700-1250mm25 Ton<40mm120(m/min)
    4*1250mm0.5-4.0mm700-1250mm25 Ton<40mm120(m/min)
    6*1250mm0.5-6.0mm700-1250mm25 Ton<40mm120(m/min)
    3*1600mm0.5-3.0mm900-1600mm30 Ton≥40mm120(m/min)
    4*1600mm0.5-4.0mm900-1600mm30 Ton≥60mm110(m/min)
    6*1600mm1-6mm900-1600mm30 Ton≥60mm100(m/min)
    8*2000mm2-8mm900-2000mm35 Ton≥70mm60(m/min)
    10*2200mm3-10mm900-2200mm35 Ton≥80mm50(m/min)
    12*2200mm3-12mm900-2200mm35 Ton≥100mm40(m/min)
    16*2500mm4-16mm900-2500mm35 Ton≥100mm40(m/min)
    20*2500mm6-20mm900-2500mm35 Ton≥100mm30(m/min)
