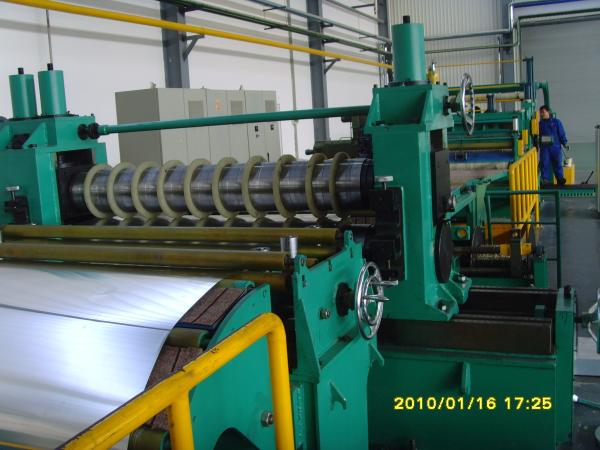

    1300mm Aluminium Plate Cutting Machine 120KW Galvanized Steel Strip

    Ask Lasest Price
    Brand Name : RILANT
    Model Number : SZHG-1300N
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    1300mm Aluminium Plate Cutting Machine 120KW Galvanized Steel Strip

    0.3~1.0mm×1300 Precision Slitting Line Longitudinal Cutting Steel Plate Slitting Machine For Steel

    Steel Roll Data

    • Material: galvanized steel, cold roll
    • Steel Thickness: 0.3mm~1.0mm
    • Steel Roll Width: 300mm~1250mm
    • Stel Roll ID:Φ508mm
    • Steel Roll OD:Φ1600mm
    • Steel Roll Weight: 8ton
    • Slitting Line Production Data
    • Slitting Width Tolerance: ≤±0.05mm
    • Slitting Straightness: ≤1mm/2000mm
    • Collecting Roll ID: ≤Φ508mm
    • Collecting Roll OD: ≤Φ1600mm
    • Slitting Strip: Max. 10 strips with thickness 1.0mm
    • Other Data
    • Line Speed: 0~120m/min
    • Location Size: length 18m
    • Power Supply: 380V/50HZ/3Phase
    • Power: about 130KW
    • Drive Motor: Uncoiler Motor AC11KW
    • Slitter Motor AC37KW
    • Collecting Motor AC75KW
    • Hydraulic Station Motor AC7.5KW
    • Line Direction: face to operation panel from left to right
    • Operator: technical worker 2, normal worker 1
    • Machine Color: Blue or customized
    • Machines List

    • Loading Car: 1set
    • Hydraulic Uncoiler: 1set
    • Hydraulic Assistance Support: 1set
    • Transfer Bridge: 1set
    • Side Guide & Slitting Machine: 1set
    • Transfer Bridge: 1set
    • Hydraulic Tension Station: 1set
    • Hydraulic Collecting Machine: 1set
    • Hydraulic Assistance Support: 1set
    • Unloading Car: 1set
    • Hydraulic System: 1set
    • Electrical Control System: 1set
    • Spare Parts: 1set
    • . Technical Process Flow:
    • Loading→Uncoil→Transfer Bridge→Guide&Slitting→Waster Material Collecting→Transfer Bridge→Tension→Roll Collecting→Unloading


      . Electrical Parts List

      NoNameSupplier
      1PLCTaiwan Yonghong
      2Operation ScreenTaiwan Weilun
      3InverterChina Famous Brand
      4Intermediate RelayChina Famous Brand
      5Pneumatic UnitChina Famous Brand
      6MotorChina Famous Brand
      7Hydraulic UnitChina Famous Brand
      8Main BearingChina Famous Brand
