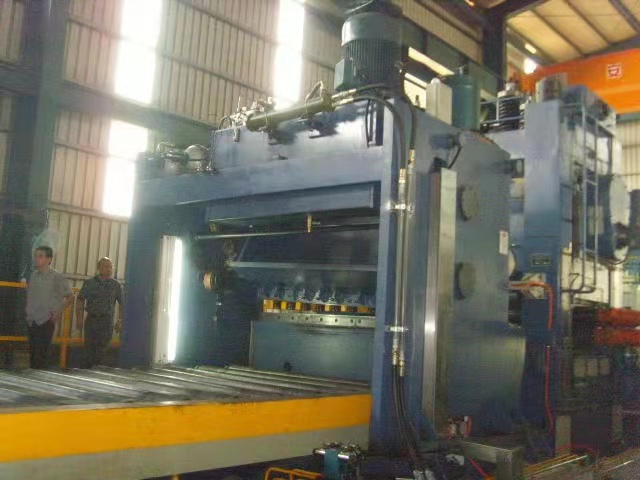

Steel Coil Cutting Machine Coil Steel Fiber Laser Cutting Machine With Auto Feeding

The automatic design of the whole process, which is from loading-uncoiling-leveling-cutting saves labor, realizes the net cutting of coil materials, and improves the utilization of sheet materials.

It is suitable for processing cold-rolled and hot-rolled carbon steel, silicon steel, tinplate, stainless steel and various metal materials after coated zinc on surface.

Composition:

• Coil car
• Uncoiler
• Head straightener
• Coarse leveler
• Loop
• Vertical roller device
• Fine leveler
• Cut shear
• Delivery conveyor
• Plate stacker
• Hydraulic system
• Electric control system
• Bolts and buried parts

1. Specifications:

Technical Parameters of roll slitting machine:

a. applied to : HR,CR

b. Tensile strength:b≤500Mpa,S≤300Mpa

c. thickness:0.5-2.0mm

d. width:500-1500(Max)

e. coil ID: 508mm

f. coil OD:1600mm(Max)

g. weight :15T(Max)

h. diameter of leveling rollers: 65mm

i. distance of leveling rollers:70mm,

j. material of leveling roller: GCr15,hardness:HRC55-60

k. total weight of machines:around 30T

2. Finished products parameters:

a. diagonal tolerance:≤±1mm/2000mm

b. length tolerance:≤±0.5mm/2000mm

3. Other parameters :

a. power :380V/50Hz/3Ph

b. line speed:0-60m/min

c. capacity :around 100Kw

d. area of the whole production line(about) 25m(L)X7m(W)

e. people of operation: 1 technician and 2 general workers

f. color of the machines: grass green
