    Q235 Steel Coil Cutting Machine 120KW Steel Strip Cutting Machine

    Ask Lasest Price
    Brand Name : RILANT
    Model Number : SZHG-2000N
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 2 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Q235 Steel Coil Cutting Machine 120KW Steel Strip Cutting Machine

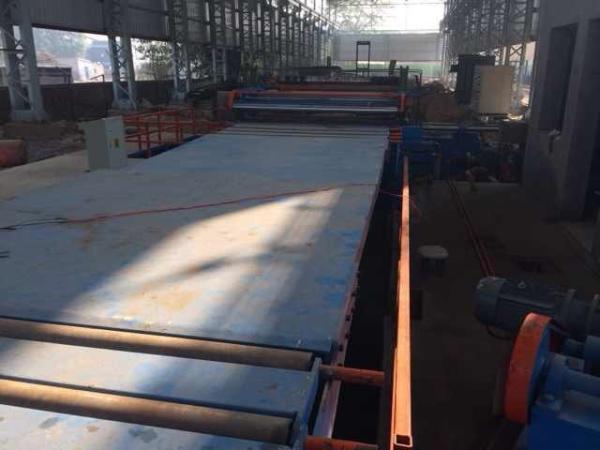

    Automatic Sheet Slitting Machine For Steel Coil /Steel Strip Cutting Machine

    Hydraulic decoiler(with car) --- Slitting machine---Crimping device---Clamping device---Hydraulic coil winding machine(with car)
    Item
    Main specification
    Coil material
    Q235
    Coil thickness
    0.38/0.45/0.76/0.91mm
    Coil width
    1200mm
    Coil inner diameter
    450-500mm
    Max coil weight
    7000Kg

    The slitting machine is also called vertical slitting line which are used to slit cold rolled steel coil,hot rolled steel coil,galvanized

    steel coil,silicone steel coil,stainless steel coil,aluminum coils etc into different width according to the user’s production demands and cut as well The smaller metal strips are recoiled at the end of the slitting machine by which these smaller strips are used necessarily for the next process usage in the professional field of making transformers,motors making industry,tube/pipe welding mill industry,Cold roll forming industry, ceiling drywall industry and other high-precison equipment making and metal strips making industries. According to the material slitting thickness there are thin plate or board slitting machine,media-thickness plate or board slitting machine and thick plate or board slitting machine. According to the metal materials there are copper strips slitting machine,stainless steel slitting machine,cold or hot rolled plate slitting machine,silicone steel slitting machine.

    Steel coil parametersMaterialHR,CRS and GI
    Tensile strengthδb≤450Mpa,δS≤260Mpa
    Steel thickness0.3-3mm
    Steel width500-1600
    Steel coil I.Dφ480-520 mm
    Steel coil O.Dφ1600mm(Max)
    Steel coil weight15T
    Slitter parametersknife pivot diameterФ200 mm
    Knife pivot material40Cr
    Blades specificationΦ200mmXφ340mmX15mm
    Blade material6CrW2Si
    Slit parameterMax slit quantity5 pcs (3mm) 25 pcs(0.3mm)
    Width precision≤±0.05mm/2M
    Mini slit strips width20mm
    Other parametersPower380V/50Hz/3Ph
    Line speed0-100m/min
    Capacity210 Kw
    Whole line Dimension25m(L)X8m(W)
    Operator needed1 mechanical engineer ,2 common workers
    Line directionFrom right to left(Face to machine)
    Machine colorWhite grey
