    External Wall Rockwool Production Line Board EPS Sandwich Panel Production

    Ask Lasest Price
    Brand Name : RILANT
    Model Number : GL-2000
    Certification : CE
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    External Wall Rockwool Production Line Board EPS Sandwich Panel Production

    Glass Wool Production Line External Wall Rock Wool Integrated Board EPS Sandwich Panel Roll Forming Machine

    1. Producing process
    A. Equipment forming:
    Melting equipment
    Gas pond kiln:
    Furnace platform (platform with three layers)
    Batch feeder
    Feeder (bearing weight is 0.3 ton)
    Fan
    6-41-7.1# (wind-pipe Inc.)
    Venturi (combustible gas controller)
    Venturi control cabinet
    Electric control cabinet

    B. Fibrosis equipment
    Spinning machine
    Control cabinet
    Resin-spray and concoction liquid assembly
    Spinning machine track support frame
    Spinning machine moving vehicles

    C. Wool collection part:
    Wool collection machine 1 set

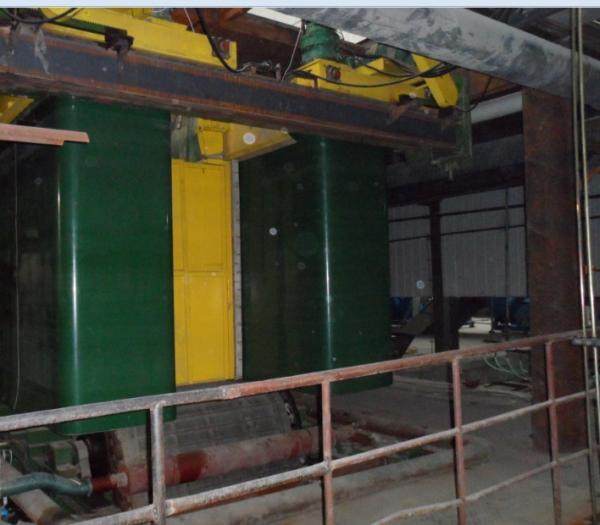

    Wool-collecting barrel
    Wool-collecting induced fan
    4-72-10C
    4-72-12C
    Wool-collecting machine chain board fan
    9-19-5A
    Wool-collecting machine control cabinet

    D. Shaping equipment
    Wool-allocation conveyer (8 meters)

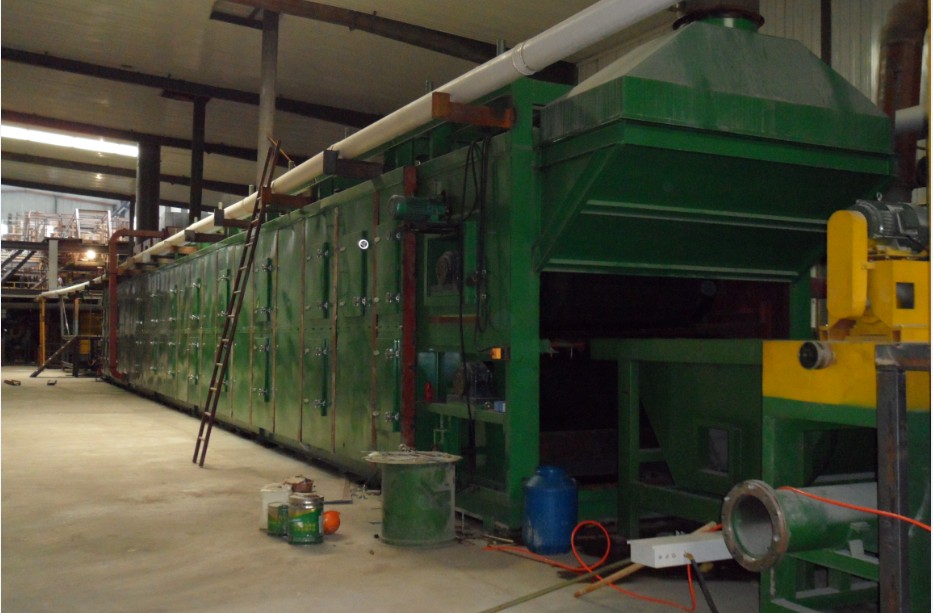

    Solidify furnace(curing furnace)
    The main power assembly
    Heat-resisting fan
    6-41-7.1C 6-41-4.5C

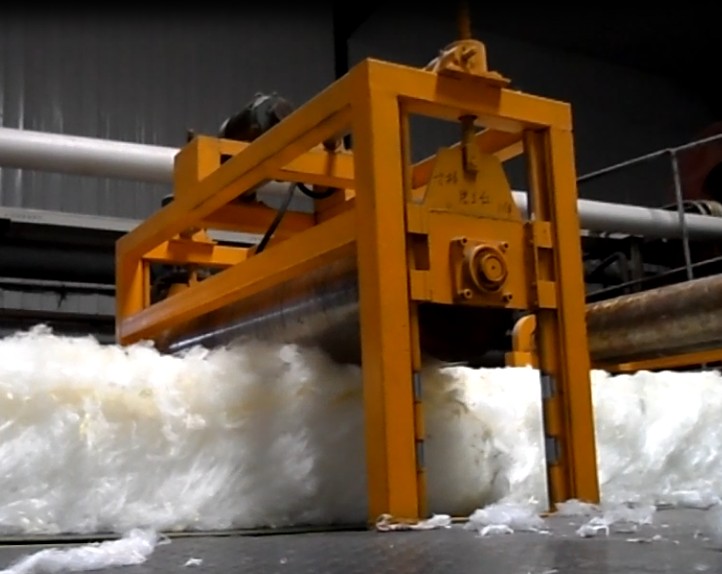

    Slitting cutting machine
    Crosscutting machine

    E. Scrap recycling equipment

    F. Felt-rolling machine
    Control cabinet (touch screen PLC control cabinet)

    G. Resin-making equipment
    Electric heating reaction vessel
    Reaction vessel platform
    Reaction vessel control cabinet
    Resin-making tank

    H. Chilling machine

    I. Universal equipments
    Air-compressor 20m3
    Air-compressor control cabinet
    Roots fan
    Roots fan control cabinet
    Water pump

    2. Technical Data

    Glass Wool ProductDensity (kg/m³)Size (mm)
    LengthWidthThickness
    Board25~1001000~1200500, 600, 63020~100
    Felt10~481000~150001000, 120020~150


    1. Fiber diameter: 5-7um
    2. Shot content (≥0.25 mm): <0.3%
    3. Max. application temperature: 300°C.
    4. Thermal conductivity (w/m•k): 0.04 ~ 0.06
    5. Sound absorption coefficient (400 ~ 4000Hz): 1~1.2

    3.Product Application
    It is widely used for heat insulation and sound absorption in industrial workshops, warehouses, public facilities, exhibition centers, shopping malls, and a variety of indoor playgrounds, sports stadiums and etc.

    4.Distinctive advantages:
    Unique technology; rebound degree after compressive packing is up to 99.2%.
    Soft and long glass fibers can maximally lessen flying catkins in the construction.Sound absorption and noise reduction; it can effectively prevent sound from spreading.

    Grade A1 incombustible materials.

    Easy for construction; cutting at will.

    Antisepsis, ageing resistance, and anticorrosion, ensuring a healthy environment.

    Low moisture absorption; stable physical properties.

    NoForming Machine Parameter

    1


    Suitable MaterialColored Steel plate, Galvanized board

    2


    Width of the raw material1000/1200mm
    3Total Power28KW
    4Thickness of raw material0.3-0.7mm
    5Thickness of Panel50-200mm
    6Machine Length23500x2440x2450mm
    7Weight9600KG
    7Speed0-4m/min

    8


    Voltage380V 50Hz 3phases
