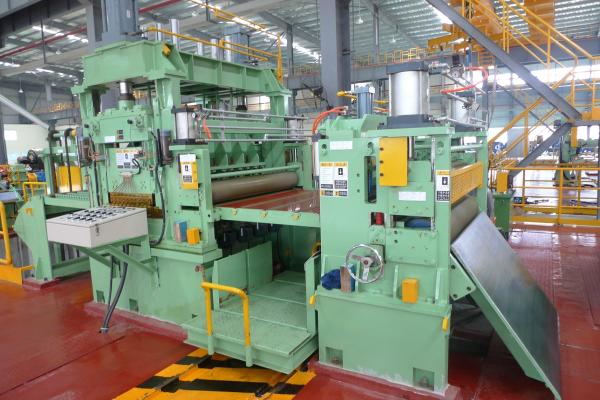

This Cut to Length Line is used for the metal plate decoiling, slitting and winding into several volumes needed width coil plate. Suitable for processig of cold rolled and hot rolled carbon steel,silicon steel, tinplate, stainless steel and the surface of all kinds of metal plate after plating. The Slitting Line PLC control, human-machine interface, according to a high degree of automation,simple operation and reliable.

1. Specifications:Technical Parameters of roll slitting machine:

a. applied to : HR,CR

b. Tensile strength:b≤500Mpa,S≤300Mpa

c. thickness:0.5-2.0mm

d. width:500-1500(Max)

e. coil ID: 508mm

f. coil OD:1600mm(Max)

g. weight :15T(Max)

h. diameter of leveling rollers: 65mm

i. distance of leveling rollers:70mm,

j. material of leveling roller:GCr15,hardness:HRC55-60

k. total weight of machines:around 30T

2. Finished products parameters:

a. diagonal tolerance:≤±1mm/2000mm

b. length tolerance:≤±0.5mm/2000mm

3. Other parameters :

a. power :380V/50Hz/3Ph

b. line speed:0-60m/min

c. capacity :around 100Kw

d. area of the whole production line(about) 25m(L)X7m(W)

e. people of operation: 1 technician and 2 general workers

f. color of the machines: grass green

STANDARD EQUIPMENTS Hardened blades. - Top blades : 2 sides - Bottom blades : 4 side 600mm motorized backgauge system with 0,1 mm accuracy. 800mm side gauge and front support arms. Metric and inch rulers. Front, side and back safety panels which are suitable for CE norms. Sheet sliding system. Schneider Electric System. Rexroth hydraulic system. Moveable foot pedal. Manual blade gap adjustment. Emergency stop button. Collapsible finger protection.

Kunshan Brave Tech Co.,Ltd is a manufacturer and trader for steel coil slitting machine , steel coil cutting machine, high speed flying shear machine and other related moulds.

Kunshan Brave located in Jiangsu province, with be richly endowed by nature geographical advantage; strong technical force; efficient management team and strong sales service ability, the company developed rapidly, product and services of radiation throughout the country and exported to Southeast Asia, the Middle East, India and Pakistan, South America around.

Our company is professional in designing and producing all kinds plates processing machines. At present, we have own team of design, production and sales. We can provide our customers with one-stop and high quality service.

Kunshan Brave has for many years engaged in the metal industry of flying shear machine, leveling shearing and slitting machine research and development, management, production and sales of professional team.Company strict implementation of ISO9001 2008 quality management system standard, after many years of innovation and development, set up across the country and abroad sales system.Excellent quality and perfect after sale service system to win a large number of loyal customers for the company, the more highly recognition industry and authority.

In the actual operation process, Kunshan Brave vigorously promote technological transformation and industrial upgrading, for market resources, technical information, the company at all levels of leadership research and development departments and scientific research personnel to carry out technical research, technical cooperation and after-sale technical services. Products from the production orders to the assembly and delivery, in strict accordance with the quality management system for the operation, strict quality control, and fully meet the needs of users, in the customer first philosophy, always put the customer in the first place.
