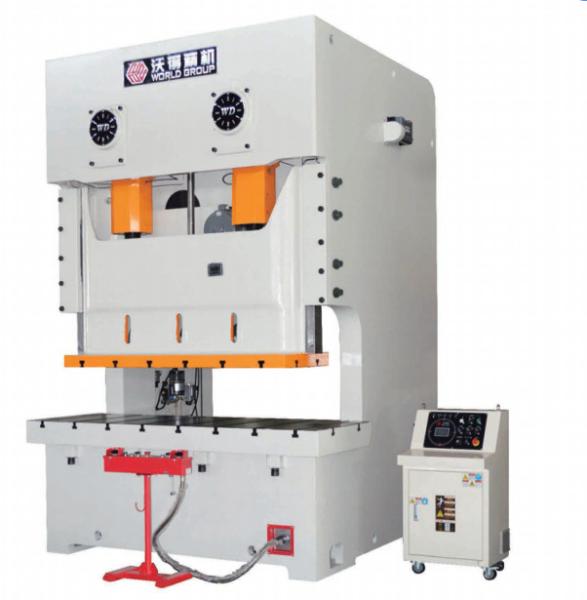

    JW31 Mechanical Power Press Machine 3T 80 Ton Press Machine

    Ask Lasest Price
    Brand Name : WORLD
    Model Number : JW31
    Certification : CE ISO
    Price : Negotiation
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets per month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    JW31 Mechanical Power Press Machine 3T 80 Ton Press Machine

    JW 31 Series Stamping Press Machine Mechanical Press Equipment Sheet Metal Punch Press Machine

    Standard equipment:


    Wet clutch(Worid)

    Hydraulic overload protecting pump

    Auto lubrication system

    Manual lubrication system

    Balance cylinders for slide and upper die

    Digital die height indicator Joint for miss-feeding

    Touch screen

    Cam controller

    Rotary encoder

    Movable operation panel

    Die height adjusted motor

    PLC :Programmable logical controller

    Air source quick connector

    Shock Absorption Pads

    Air blowing device


    Optional equipment:

    Light curtain

    Foot pedal

    Air cushion device

    Die quick change device

    Frequency changer

    Foundation bolts

    Top stripping device for slider


    Specifications:


    ITEMCODEUNITJW31-160JW31-200JW31-250JW31-315JW31-400
    Nominal CapacityPeKN16002000250031504000
    Slide Stroke LengthSmm180200220220250
    Slide StrokesFixedspm4545303025
    Variable(optional)spm35-5535-5520-3520-3520-30
    Max. Die Shut HeightH2mm400450500550600
    Die Shut Height Adjustmenttmm110110120120120
    Distance Between Uprightsd1mm11001200130013501450
    Slide Bottom SizeFBbmm600700750800850
    LRamm75085095010001100
    Shank Hole SizeDiameterdmm6565707080
    DepthImm90909595100
    Table SizeFBDmm650750800850900
    LRCmm10001100120012501350
    ThicknessH3mm165180190190200
    Overall DimensionsFBAmm22002300250026002700
    LRBmm17802000205022002370
    HeightHmm38004200420045504900
    Motor PowerKW1518.5223037
